Khoom Description
Hydraulic tooj liab busbar dabtsi yog khoov tshuab cnc
Yuav ua li cas xaiv lub busbar ua tshuab?
Lub tshuab ua haujlwm busbar tau muab faib ua turret hom busbar ua tshuab,Leaderfeng CNC tooj liab aluminium busbar ua tshuab, portable busbar tshuab, cais hom busbar dabtsi yog khoov tshuab pwm, thiab lwm yam. Cov khoom siv no yog tsim rau kev lag luam xws li siab thiab tsis tshua muaj hluav taws xob ua tiav switchgear, transformers, muaj hluav taws xob furnaces, thiab lwm yam, thiab yog siv los ua ntau yam specifications ntawm tooj liab txhuas. busbars. Cov neeg siv tuaj yeem ua cov punching, shearing, thiab folding ntawm busbar tuav ntawm cov khoom ua haujlwm, uas ua rau muaj kev ua haujlwm siab. Yog li yuav ua li cas xaiv lub tshuab busbar? Hauv qab no, tus editor yuav qhia rau koj xaiv cov lus qhia rau busbar processing machines, nrog rau lawv cov yam ntxwv thiab kev siv tsis. Peb vam tias nws tuaj yeem pab tau rau txhua tus!
Khoom nta:
1. Lub tshuab tau nruab nrog peb lub tshuab ua haujlwm rau kev xuas nrig ntaus, shearing, thiab folding ntawm busbars, uas tuaj yeem ua tiav nyias lossis ib txhij los ntawm phau ntawv lossis ko taw hloov. Lub tshuab no muaj kev ua haujlwm siab thiab siv tau yooj yim.
2. Lub sijhawm ua haujlwm ntawm txhua chav ua haujlwm tuaj yeem hloov kho tau yooj yim, txo lub sijhawm ua haujlwm thiab txhim kho kev tsim khoom. Los ntawm kev hloov pwm, ntau yam kev ua haujlwm kuj tuaj yeem ua tiav, xws li xuas nrig ntaus lub voj voog ntev, folding ntsug dabtsi yog khoov, folding ca dabtsi yog khoov, embossing, thiab flattening.
3. Lub tshuab dabtsi yog khoov yog cov qauv kaw thiab siv txoj hauv kev kab rov tav machining los xyuas kom meej lub zog ntawm cov khoom siv khoov. Los ntawm kev hloov cov pwm dabtsi yog khoov, lub machining ntawm ca dabtsi yog khoov, ntsug dabtsi yog khoov, embossing, thiab flattening ntawm lub workpiece yuav ua tiav; Khoov ntawm busbars nrog cov thicknesses sib txawv tuaj yeem ua tiav los ntawm kev kho qhov hloov pauv ntawm lub tog raj kheej roj ua haujlwm kom tswj tau qhov mob stroke nrug, thiab lub tshuab hluav taws xob xaim hluav taws xob sib raug rau cov lej sib txawv kom ua tiav lub kaum sab xis sib txuas.
4. Lub tshuab xuas nrig ntaus thiab shearing ua haujlwm tau txais kev ua haujlwm ntsug, thiab lub tshuab tau nruab nrog ob hom kev ua haujlwm: phau ntawv khawm thiab ko taw hloov. Kev ua haujlwm yog yooj yim, yoog raws thiab yooj yim, thiab cov neeg ua haujlwm txawj ua haujlwm tau yooj yim.
Parameter sib piv:
(50 hom busbar ua tshuab tuaj yeem ua cov tooj liab txhuas tuav nrog qhov dav ntawm 250mm thiab tuab ntawm 16mm, thiab ntau yam qauv ntawm busbar ua tshuab tuaj yeem kho raws li cov neeg siv khoom xav tau); Portable thiab cais hom yog tsim nyog rau kev tsim kho ntawm qhov chaw, nrog kev ua haujlwm ntawm 150mm dav, 12mm tuab xuas nrig ntaus, thiab 10mm tuab shearing thiab khoov. Kev ua haujlwm siab busbar ua tshuab. Kev Ua Haujlwm thiab Kev Siv: Cov cuab yeej no suav nrog peb txoj haujlwm: xuas nrig ntaus, shearing, thiab folding. Nws yog ib lub tshuab ua ke tshwj xeeb rau kev ua cov busbars. Lub tshuab no tau nruab nrog ob chav ua haujlwm, thiab peb lub chaw ua haujlwm tuaj yeem ua haujlwm ib txhij yam tsis muaj kev cuam tshuam rau ib leeg. Lub tshuab yog nruab nrog ib tug positioning kav, ua rau qhov chaw ntawm lub workpiece yooj yim thiab raug. Nws yog ib qho khoom siv zoo tshaj plaws hauv kev lag luam hluav taws xob.
Khoom Parameter:
|
Qauv nab npawb |
LDFMX-303ESK |
|
Nominal siab |
350kn ua |
|
Max machining loj |
160 * 12 hli |
|
Punching ua ntau yam |
Ф4 3-25 hli |
|
Rooj loj |
Thawj pem teb platform: 1500mmx1200mm 2 pem teb: 940mmx420mm |
|
Khoom loj |
1750mmx1350mmx1500mm |
|
Khoom hnyav |
1390 KWG |
|
Bending Angle plc tswj |
yog |
|
Peb lub chaw ua haujlwm ib txhij |
yog |
|
Qauv nab npawb |
LDFMX-503ESK |
|
Nominal siab |
500kn ua |
|
Max machining loj |
200 * 16mm |
|
Punching ua ntau yam |
Ф4 3-32 hli |
|
Rooj loj |
Thawj lub platform: 1600mmx1400mm II pem teb: 1020mmx500mm |
|
Khoom loj |
1920mmx1550mmx1500mm |
|
Khoom hnyav |
1900 KGS |
|
Bending Angle plc tswj |
yog |
|
Peb lub chaw ua haujlwm ib txhij |
yog |
|
Qauv nab npawb |
LDFMX-803ESK |
|
Nominal siab |
8 00kn |
|
Max machining loj |
260 * 16mm |
|
Punching ua ntau yam |
Ф4 3-36 hli |
|
Rooj loj |
Thawj pem teb platform: 1770mmx1600mm II pem teb: 1120mmx450mm |
|
Khoom loj |
2150mmx1750mmx1500mm |
|
Khoom hnyav |
2280 KGS |
|
Bending Angle plc tswj |
yog |
|
Peb lub chaw ua haujlwm ib txhij |
yog |
|
Cov khoom seem: Txiav chav tsev: ib khub txiab Punching unit: yim txheej ntawm xuas nrig ntaus tuag (yeem) Bending unit: U-khoov 1 teeb, ca khoov 3 teeb (tag nrho ntawm 5 daim), embowel 1 teeb Lwm tus: ib txheej ntawm cov cuab yeej tu thiab accessories, peb ko taw hloov |

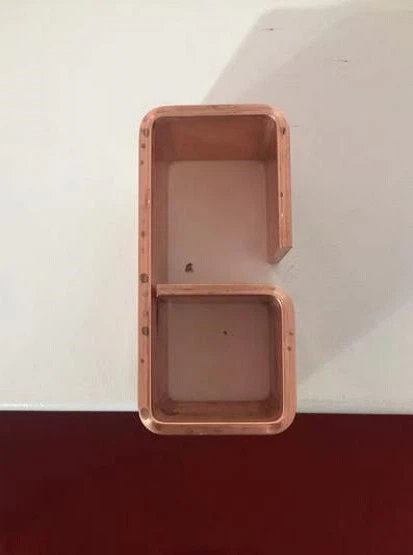

Qauv tso saib
Rhiav zaub:
FAQ:
Packing & Shipping:
Txheem tawm lub tsheb npav ntim, lub hnab ntim hauv lub tshuab nqus tsev, zam cov khoom siv ya raws ya raws.
