Khoom Description
Automatic busbar xuas nrig ntaus tshuab(BECKHOFF qhov system)
Khoom nta:exquisite craftsmanship, ntse ua haujlwm, ruaj khov thiab ruaj khov.
Khoom siv ua haujlwm:Txiav, xuas nrig ntaus, chamfering, embossing (ntau lub voj voog, lub qhov square, qhov tsis sib xws, thiab cov duab zawj) thiab lwm yam kev ua rau tooj liab aluminium busbars.
Cov yam ntxwv tseem ceeb
√ Lub tshuab no belongs rau cov cuab yeej tshwj xeeb ua rau tooj liab aluminium busbars nyob rau hauv lub siab thiab tsis tshua muaj hluav taws xob ua tiav kev lag luam ntawm cov hluav taws xob hluav taws xob. Nws muaj cov yam ntxwv ntawm kev ua haujlwm siab, kev siv hluav taws xob tsawg, kev ua haujlwm siab, kev ua haujlwm yooj yim, thiab zoo nkauj thiab zoo nkauj tshiab (tus lej patent: ZL201430448531.8).
√ Cov cuab yeej no muaj cov txheej txheem ua haujlwm tshwj xeeb thiab cov txheej txheem. Lub hydraulic lub tog raj kheej txav khoom yog tsim patent (tus naj npawb patent: ZL201320804568. X), nrog rau kev ua haujlwm txhua hnub ntawm ob peb tons lossis ntau dua yog cov khoom siv zoo tshaj plaws rau kev lag luam busbar.
√ Rau ntev tooj liab thiab txhuas tuav, ib zaug clamping tuaj yeem ua tiav yam tsis muaj phau ntawv cuam tshuam thaum ua haujlwm. Los ntawm kev rov ua dua qhov hloov ntawm cov clamps, qhov xuas nrig ntaus thiab shearing ntawm workpiece tuaj yeem ua tiav.
√ Lub tsev qiv ntawv pwm tuaj yeem xaiv los ntawm xya lub punch, ib qho shear, ib qho embossing lossis yim punch, ib qho shear inline pwm tsev qiv ntawv.
√ Cov cuab yeej txiav yog ib lub tshuab txiav cov cuab yeej (patent naj npawb: ZL201300804566.0), thiab tsis muaj pov tseg tom qab txiav.
√ Tag nrho lub tshuab yog tsim los ntawm lub rooj noj mov, lub tsev lag luam pwm, cov khoom siv thauj khoom, lub tshuab servo tswj, thiab cov txheej txheem tsim, nrog kev ua haujlwm ruaj khov thiab txhim khu kev qha.
√ Tib neeg-tshuab interface yog yooj yim rau kev khiav lag luam, nruab nrog lub hwj chim lub tsev busbar ua tshuab auxiliary tsim system (daim ntawv pov thawj tus naj npawb: Software Registration No. 0846802), uas qhia txog lub sijhawm ua haujlwm ntawm qhov program.
√ Cov pwm thav duab yog ua los ntawm cov khoom siv hlau, uas muaj kev hnav zoo thiab ua kom lub ntsej muag zoo ntawm cov punching sab sauv thiab qis pwm thaum siv mus ntev.
Technical Parameter
|
Qauv |
|
MX602K-8C |
|
Nominal siab |
600 KN |
|
|
Max machining loj |
16 * 200 hli |
|
|
Punching ua ntau yam |
Φ4 3-25 hli |
|
|
Muaj pes tsawg tus pwm tuaj yeem ntsia tau |
8 puj 1 t |
|
|
Parameter sib piv |
Kev mus ncig siab tshaj plaws ntawm X-axis |
2000 hli |
|
X-axis positioning ceev |
75m / min |
|
|
Kev mus ncig siab tshaj plaws ntawm Y-axis |
9 60mm |
|
|
Y-axis positioning ceev |
35m / min |
|
|
Kev mus ncig siab tshaj plaws ntawm Z-axis |
310 hli |
|
|
Z-axis positioning ceev |
35m / min |
|
|
Punching raug |
± 0.2 hli |
|
|
Qhov chaw |
0. 10/500 hli |
|
|
tshuab ceev |
120-150 zaug/feeb |
|
|
Tus naj npawb ntawm CNC axes |
6ax ib |
|
|
Tshuab qhov ntev (ntev x dav x qhov siab) |
10500mmX2900mmX1800mm |
|
Xaiv cov khoom siv
|
Main lub cev muaj zog |
ABB |
|
hydraulic twj tso kua mis |
Mazucci, Ltalis |
|
valve |
German Rexroth |
|
Qhia rail / ntsia hlau |
HIWIN/TBI/PMI |
|
servo qhov system |
Eston / Rexroth |
|
Kev lag luam computer |
QIYANG BEIJING |
Lub tshuab hlwb hlau, tuaj ntawm lub teb chaws Yelemees nrog BECKHOFF system, ua kom lub tshuab ua haujlwm ruaj khov.

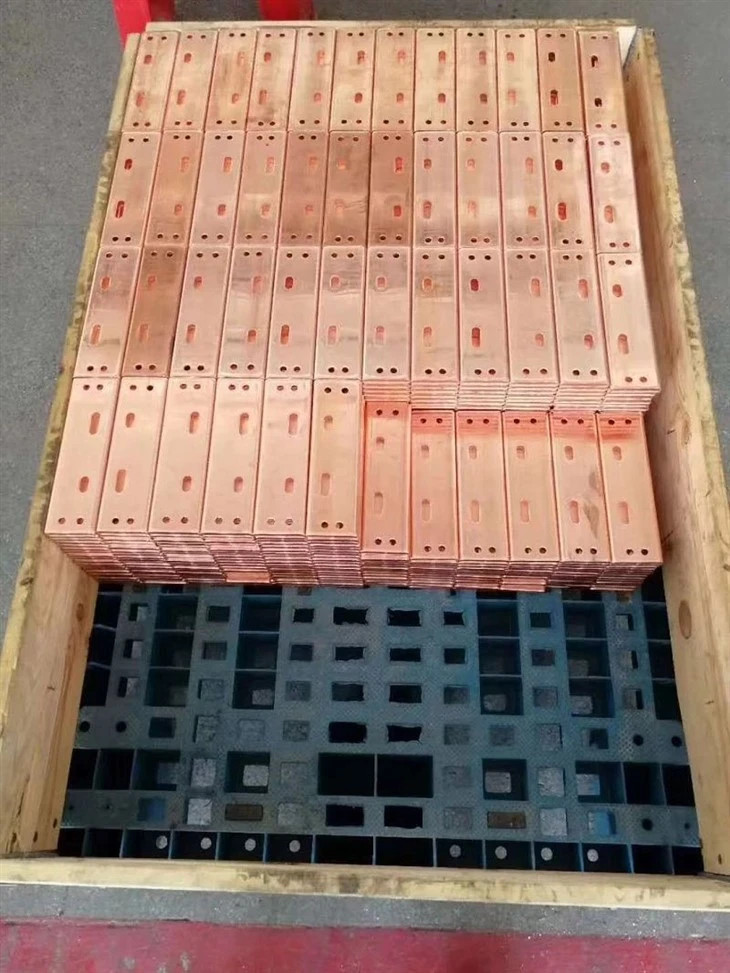

Sample zaub:
Packing & Shipping:
