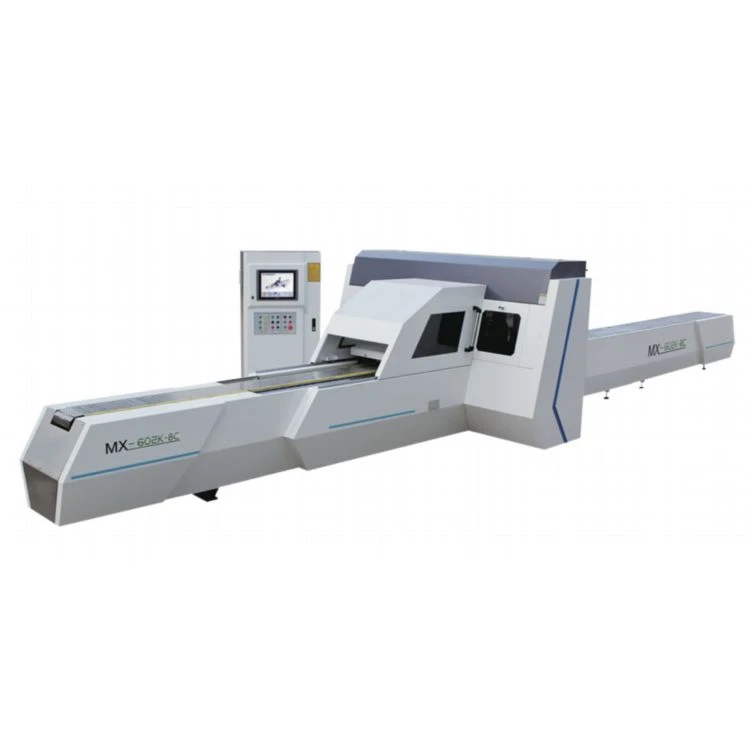

Tsis siv neeg busbar xuas nrig ntaus tshuab(BECKHOFF qhov system)
Khoom nta:exquisite craftsmanship, ntse ua haujlwm, ruaj khov thiab ruaj khov.
Khoom siv ua haujlwm:Txiav, xuas nrig ntaus, chamfering, embossing (ntau lub voj voog, lub qhov square, qhov tsis sib xws, thiab cov duab zawj) thiab lwm yam kev ua rau tooj liab aluminium busbars.
√ Lub tshuab no belongs rau cov cuab yeej tshwj xeeb ua rau tooj liab aluminium busbars nyob rau hauv lub siab thiab tsis tshua muaj hluav taws xob ua tiav kev lag luam ntawm cov hluav taws xob hluav taws xob. Nws muaj cov yam ntxwv ntawm kev ua haujlwm siab, kev siv hluav taws xob tsawg, kev ua haujlwm siab, kev ua haujlwm yooj yim, thiab zoo nkauj thiab zoo nkauj tshiab (tus lej patent: ZL201430448531.8).
√ Cov cuab yeej no muaj cov txheej txheem ua haujlwm tshwj xeeb thiab cov txheej txheem. Lub hydraulic lub tog raj kheej txav khoom yog tsim patent (tus naj npawb patent: ZL201320804568. X), nrog rau kev ua haujlwm txhua hnub ntawm ob peb tons lossis ntau dua yog cov khoom siv zoo tshaj plaws rau kev lag luam busbar.
√ Rau ntev tooj liab thiab txhuas tuav, ib zaug clamping tuaj yeem ua tiav yam tsis muaj phau ntawv cuam tshuam thaum ua haujlwm. Los ntawm kev rov ua dua qhov hloov ntawm cov clamps, qhov xuas nrig ntaus thiab shearing ntawm workpiece tuaj yeem ua tiav.
√ Lub tsev qiv ntawv pwm tuaj yeem xaiv los ntawm xya lub punch, ib qho shear, ib qho embossing lossis yim punch, ib qho shear inline pwm tsev qiv ntawv.
√ Cov cuab yeej txiav yog ib lub tshuab txiav cov cuab yeej (patent naj npawb: ZL201300804566.0), thiab tsis muaj pov tseg tom qab txiav.
√ Tag nrho lub tshuab yog tsim los ntawm lub rooj noj mov, lub tsev lag luam pwm, cov khoom siv thauj khoom, lub tshuab servo tswj, thiab cov txheej txheem tsim, nrog kev ua haujlwm ruaj khov thiab txhim khu kev qha.
√ Tib neeg-tshuab interface yog yooj yim rau kev khiav lag luam, nruab nrog lub hwj chim lub tsev busbar ua tshuab auxiliary tsim system (daim ntawv pov thawj tus naj npawb: Software Registration No. 0846802), uas qhia txog lub sijhawm ua haujlwm ntawm qhov program.
√ Cov pwm thav duab yog ua los ntawm cov khoom siv hlau, uas muaj kev hnav zoo thiab ua kom lub ntsej muag zoo ntawm cov punching sab sauv thiab qis pwm thaum siv mus ntev.
Technical Parameter
|
Qauv |
|
MX602K-8C |
|
Nominal siab |
600 KN |
|
|
Max machining loj |
16 * 200 hli |
|
|
Punching ua ntau yam |
Φ4 3-25 hli |
|
|
Muaj pes tsawg tus pwm tuaj yeem ntsia tau |
8 puj 1 t |
|
|
Parameter sib piv |
Kev mus ncig siab tshaj plaws ntawm X-axis |
2000 hli |
|
X-axis positioning ceev |
75m / min |
|
|
Kev mus ncig siab tshaj plaws ntawm Y-axis |
9 60mm |
|
|
Y-axis positioning ceev |
35m / min |
|
|
Kev mus ncig siab tshaj plaws ntawm Z-axis |
310 hli |
|
|
Z-axis positioning ceev |
35m / min |
|
|
Punching raug |
± 0.2 hli |
|
|
Qhov chaw |
0. 10/500 hli |
|
|
tshuab ceev |
120-150 zaug/feeb |
|
|
Tus naj npawb ntawm CNC axes |
6ax ib |
|
|
Tshuab qhov ntev (ntev x dav x qhov siab) |
10500mmX2900mmX1800mm |
|
Xaiv cov khoom siv
|
Main lub cev muaj zog |
ABB |
|
hydraulic twj tso kua mis |
Mazucci, Ltalis |
|
valve |
German Rexroth |
|
Qhia rail / ntsia hlau |
HIWIN/TBI/PMI |
|
servo qhov system |
Eston / Rexroth |
|
Kev lag luam computer |
QIYANG BEIJING |
Lub tshuab hlwb hlau, tuaj ntawm lub teb chaws Yelemees nrog BECKHOFF system, ua kom lub tshuab ua haujlwm ruaj khov.
Lub ZW-MX160 (NC 40ZB-1200) series servo CNC busbar dabtsi yog khoov tshuab yog ib tug high-efficiency, siab automated, thiab high-precision busbar ua khoom siv rau dabtsi yog khoov tooj liab thiab txhuas tuav; Lub tshuab txais servo motors raws li lub hauv paus fais fab, CNC raws li lub chaw tswj, thiab yog txawm peem rau nrog nws tus kheej tsim CAD / CAM software systems, ua lub automation theem ntawm lub tshuab ntawm ib tug ua theem nyob rau hauv kev lag luam; Nws yog ib qho khoom siv zoo tshaj plaws rau kev ua cov busbars hauv kev lag luam xws li cov hloov hluav taws xob siab thiab tsis tshua muaj hluav taws xob, lub thawv hom substations, transformers, thiab tsheb npav ducts
● ZW-MX160 (NC 40ZB-1200) CNC tsheb npav dabtsi yog khoov tshuab yog ib qho khoom siv zoo tshaj plaws rau cov tooj liab thiab txhuas bar dabtsi yog khoov, nrog kev ua haujlwm siab, siab automation, siab precision, txuag lub sij hawm thiab kev txuag hluav taws xob zoo.
● Lub tshuab txais servo lub cev muaj zog ua lub zog tseem ceeb, CNC raws li lub chaw tswj hwm, nruab nrog nws tus kheej tsim CADICANsoftware system, ua lub tshuab automation dearee ntawm lub tshuab tib yam kev lag luam hauv qib ua, yog cov khoom siv zoo tshaj plaws rau siab thiab qis voltage ua tiav. , lub thawv-hom substation, transformer, busbar trough thiab lwm yam kev lag luam busbar ua.
● Cov qauv "kaw dabtsi yog khoov" muaj qhov zoo ntawm cov qauv yooj yim, tsim nyog quab yuam, thiab zoo heev txhim kho mechanicalstrength piv nrog qhib dabtsi yog khoov.
● Siv lub zog loj inertia servo lub cev muaj zog ua lub zog loj, ruaj khov kis tau tus mob, siab rov ua dua qhov tseeb, qhov tseeb tsis cuam tshuam los ntawm qhov kub thiab txias, ruaj khov dua.
● Thaum nyob rau hauv standby, tsis siv neeg nres muaj nuj nqi zoo heev txo cov kev siv zog ua hauj lwm.
● Suav hom kev quab yuam, cov lus qhia kev qhia tawm, kev sib npaug ntawm kev quab yuam, txo qhov cuam tshuam ntawm ib feem ntawm kev thauj khoom thiab kev sib txhuam ntawm lub neej thiab machining raug ntawm cov ntsia hlau txhuas.
● Nws tuaj yeem siv nrog CNC tsheb npav xuas nrig ntaus thiab txiav tshuab los ntawm CNC programming software, lub tshuab thiab software tsis cuam tshuam rau ib leeg, thiab kev saib xyuas yooj yim.
|
Yam khoom |
NC.40Z-1200 |
NC.40Z-2000 |
|
Nominal Siab |
400kn ua |
400kn ua |
|
Hydraulic Lub tog raj kheej Stroke |
250 hli |
250 hli |
|
Main Lub cev muaj zog |
5,5 kwv |
5,5 kwv |
|
Ntsuas Ntev |
1200 hli |
2000 hli |
|
Ntsuas qhov tseeb |
+/-0.15 |
+/-0.15 |
|
Khoov qhov tseeb |
+/{1}}.3 degree |
+/{1}}.3 degree |
|
Kab rov tav Bending Qhov siab tshaj plaws |
15 × 160 hli |
15 × 200mm |
|
Verticall dabtsi yog khoov qhov siab tshaj plaws |
12 × 120 hli |
12 × 120 hli |
|
Qhov hnyav ntawm Tshuab |
3 100kg |
3 300kg |
|
Tshuab Loj |
3500 × 1450 × 1850mm |
4300 × 1450 × 1850mm |
Sample zaub:
Packing & Shipping:
Cim npe nrov: cnc tsis siv neeg busbar xuas nrig ntaus, shearing, npav, chamfering thiab dabtsi yog khoov ua kab, Tuam Tshoj cnc siab tsis siv neeg busbar xuas nrig ntaus, shearing, npav, chamfering thiab dabtsi yog khoov ua kab manufacturers, lwm tus neeg, Hoobkas
